TSKgel SuperMultiporeHZ-M
The TSKgel SuperMultiporeHZ-M column is packed with 4 µm cross-linked poly(styrene/divinylbenzene) particles containing a wide range of pore sizes. The multi-pore particle synthesis technology essentially creates a linear calibration curve within each particle, thereby greatly diminishing chromatograms with inflection points. This base material, coupled with the semi-micro column dimensions (4.6 mm ID × 15 cm), offers users high speed and low solvent consumption analyses with precise results.
The TSKgel SuperMultiporeHZ-M column is for the analysis of organic-soluble polymers with molecular weights from 500 to 1 x 10^6 Da, providing high speed and high resolution analysis with lowered solvent consumption. The columns are shipped in THF, which cannot be replaced for any other organic solvent.

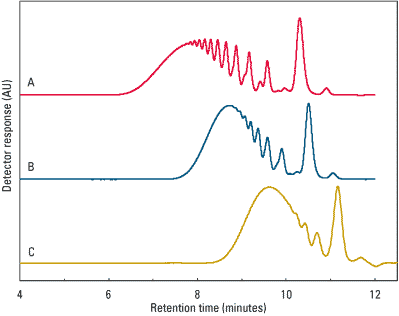

Analysis of epoxy resin
|
 |
Columns: A. TSKgel SuperMultiporeHZ-N, 3 µm, 4.6 mm ID × 15 cm × 2
B. TSKgel SuperMultiporeHZ-M, 4 µm, 4.6 mm ID × 15 cm × 2
C. TSKgel SuperMultiporeHZ-H, 6 µm, 4.6 mm ID × 15 cm × 2
Mobile phase: THF
Flow rate: 0.35 mL/min
Detection: UV @ 254 nm
Temperature: 25 ºC
Injection vol.: 10 μL
Sample: epoxy resin (3 g/L)
|
